Applications

Watch our products

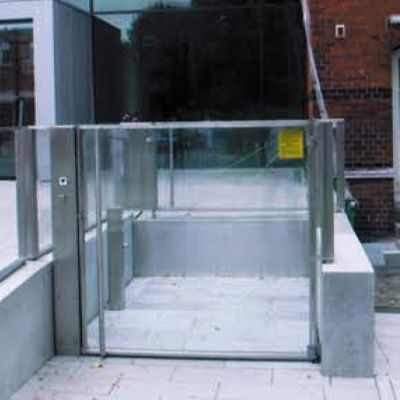

Most of our products are special designs. You can find application examples here. In our product galleries in german language you will find further illustrations for lifting platforms, elevators for the disabled, system lifting tables and spindle lifting tables.

We guarantee highest safety standards

Our products are supported with safety equipment according to safety norms UVV / EN 1570.These include:
  • Foot guard contact strip
  • Pipe anti-burst device
  • Overload protection
  • Watch dog switch
  • if necessary bridge plate, guard rails, unwind stands etc

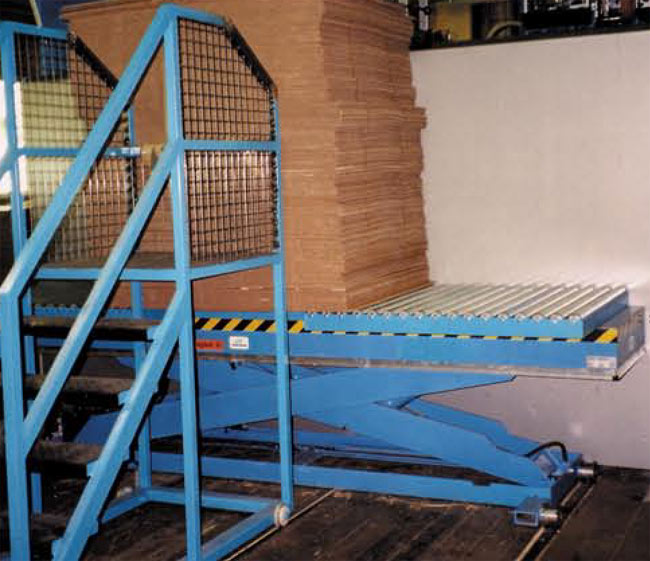

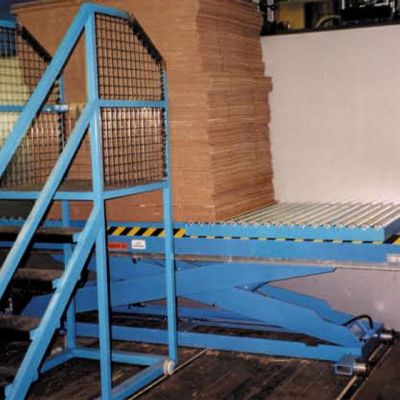

Plant scissors lift, cross on rails with non-driven roller conveyor

Plant scissors lift, cross on rails with non-driven roller conveyor

  • Platform: 2.2 x 0.8 m
  • Lifting height: 1.4 m
  • Payload: 2000 kg
  • Applications: Wood Processing and Packaging Industry

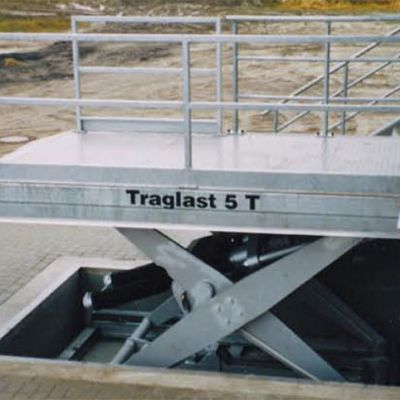

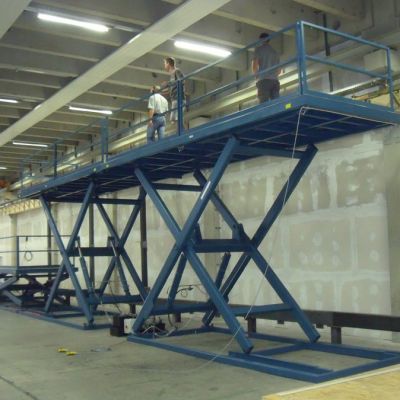

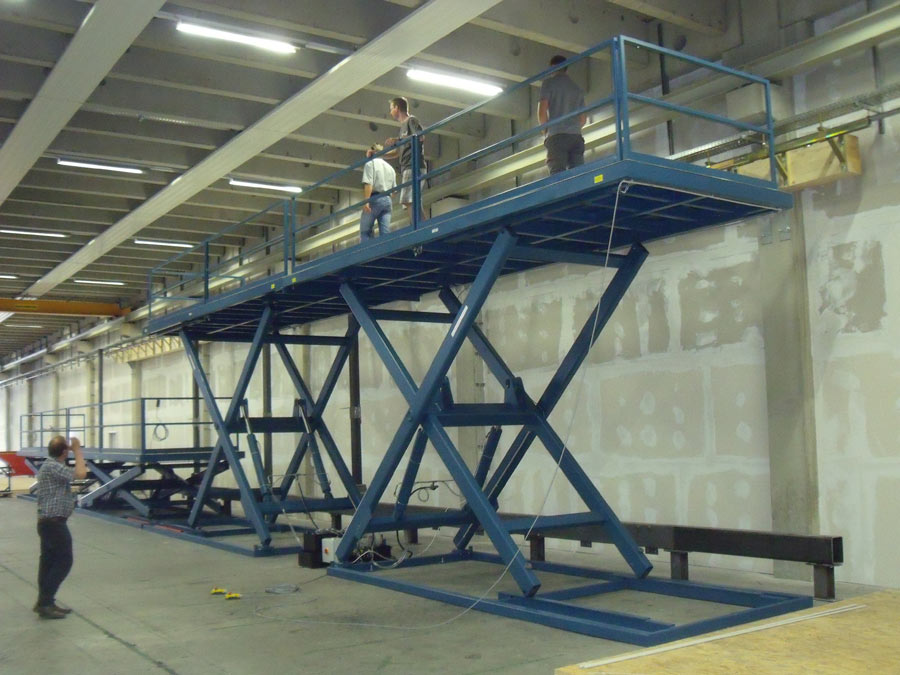

Platform , building and construction applications

Platform , building and construction applications

  • Carrying capacity: up to 5.0t
  • Useful stroke : 5.0 m
  • Platform: 13.0 x 2.20 m

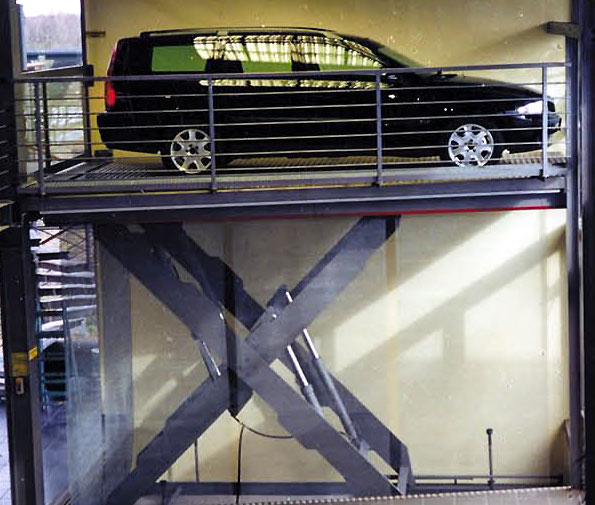

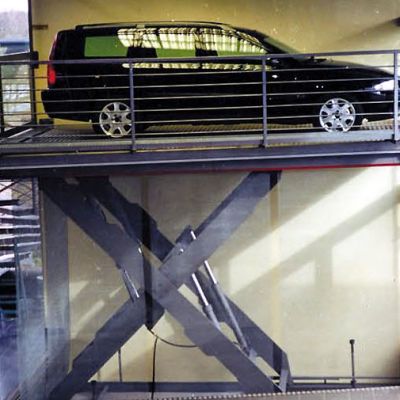

Car lift with automatically retractable railing

Car lift with automatically retractable railing

  • Platform: 6.0 x 3.0 m
  • Lifting height: 3.0 m
  • Payload: 3000 kg
  • Applications: Car dealers

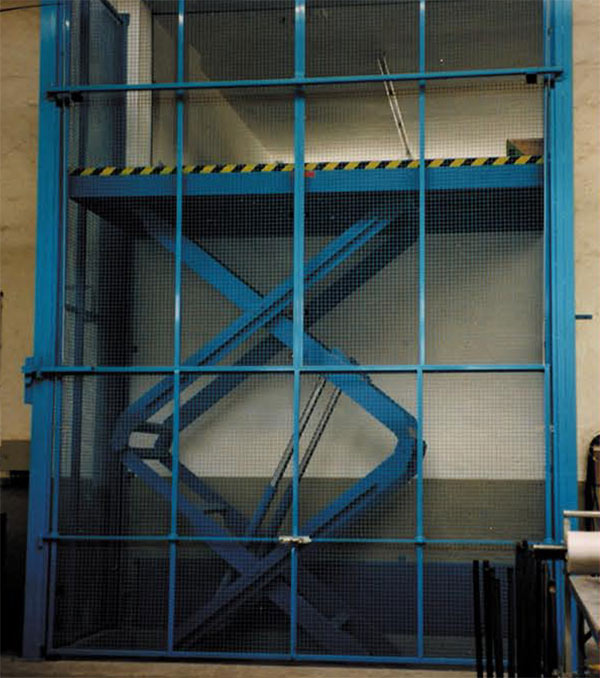

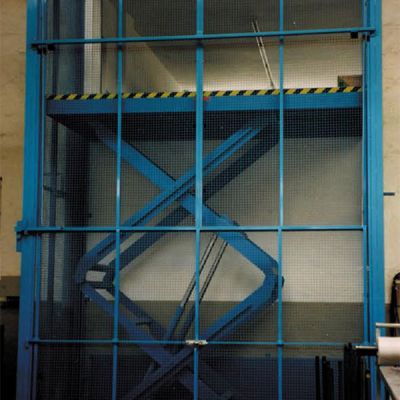

Double scissors lift with a load shaft frame

Double scissors lift with a load shaft frame

  • Platform: 2.5 x 1.0 m
  • Lifting height: 3.0 m
  • Payload: 3000 kg
  • Applications: General Industry

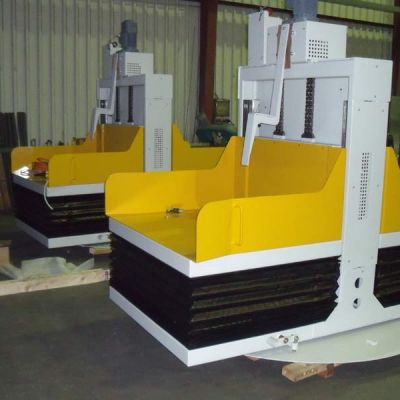

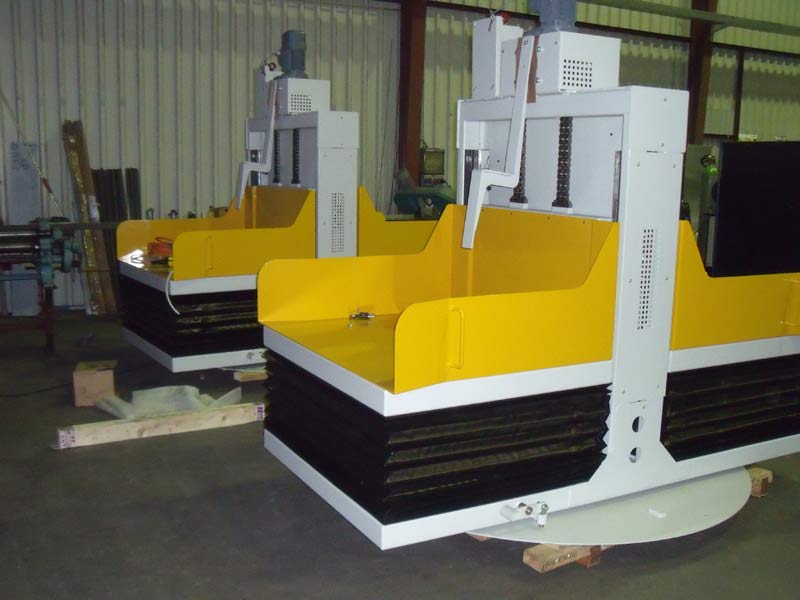

Rotary lifting unit with double lift

Rotary lifting unit with double lift

  • manually rotatable by 180°
  • Drive: Gear motor with roller chains
  • Load: 2 x 500kg
  • Lifting height: 1000mm

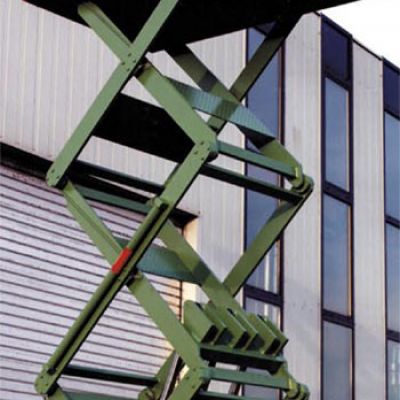

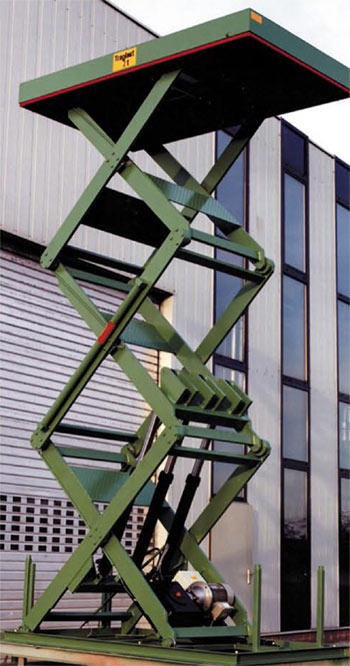

Triple scissors lifting plate

Triple scissors lifting plate

  • Platform: 3.0 x 2.0 m
  • Lifting height: 4.0 m
  • Payload: 2000 kg
  • Applications: Simplified freight elevator in the industry

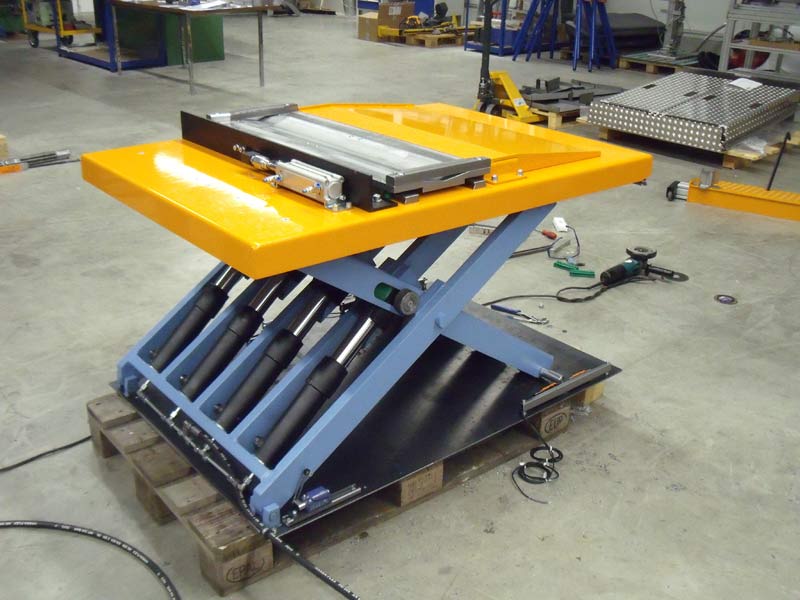

Flat lift tables

Flat lift tables

  • Maximum load 2000kg
  • Minimum height to 80mm
  • Also custom-made as tandem scissors or fancy platform size, with or without U-shape.
Scissors lift for bed transport

Scissors lift for bed transport

  • Platform: 2.2 x 1.5 m
  • Lifting height: 0.6 m
  • Payload: 500 kg
  • Applications: eg hospitals, nursing homes

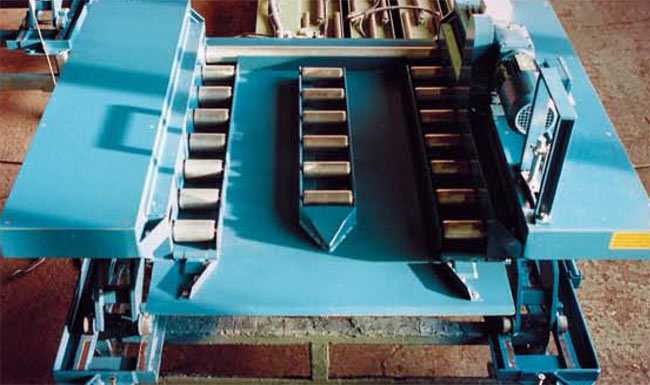

Pallet loading station for handling systems

Pallet loading station for handling systems with electrically driven roller conveyor

  • Platform: 2.5 x 1.5 m
  • Lifting height: 0.8 m
  • Payload: 1000 kg
  • Applications: handling and assembly systems

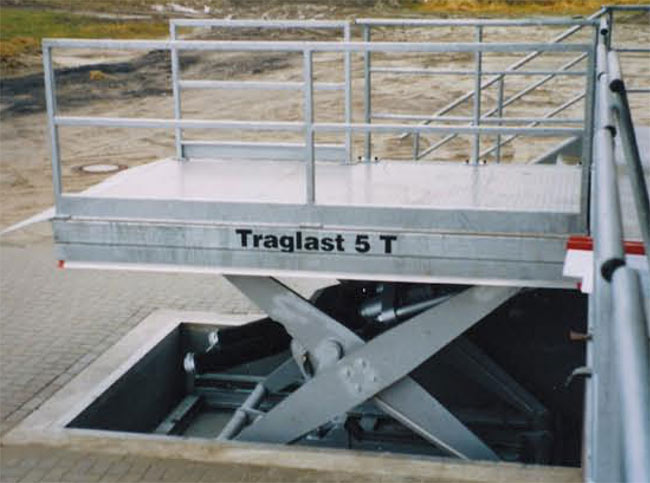

Loading scissors lift with double abor drive

Loading scissors lift with double abor drive including detachable rail and cargo doors

  • Platform: 3.0 x 2.5 m
  • Lifting height: 1.6 m
  • Payload: 5000 kg
  • Applications: Army, industry

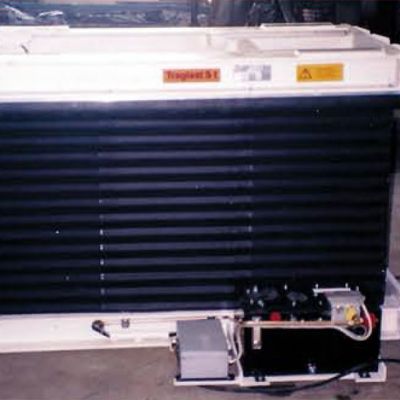

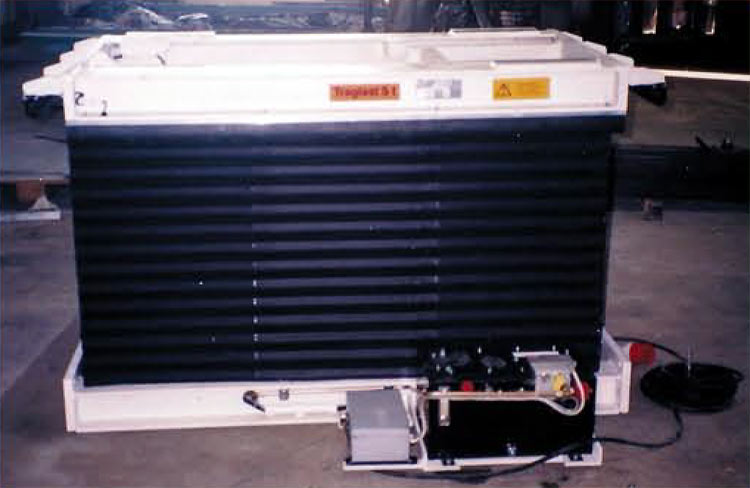

Scissors lifting plate with bellows and an external unit

Scissors lifting plate with bellows and an external unit

  • Platform: 1.5 x 1.0 m
  • Lifting height: 1.0 m
  • Payload: 5000 kg
  • Applications: eg automotive industry

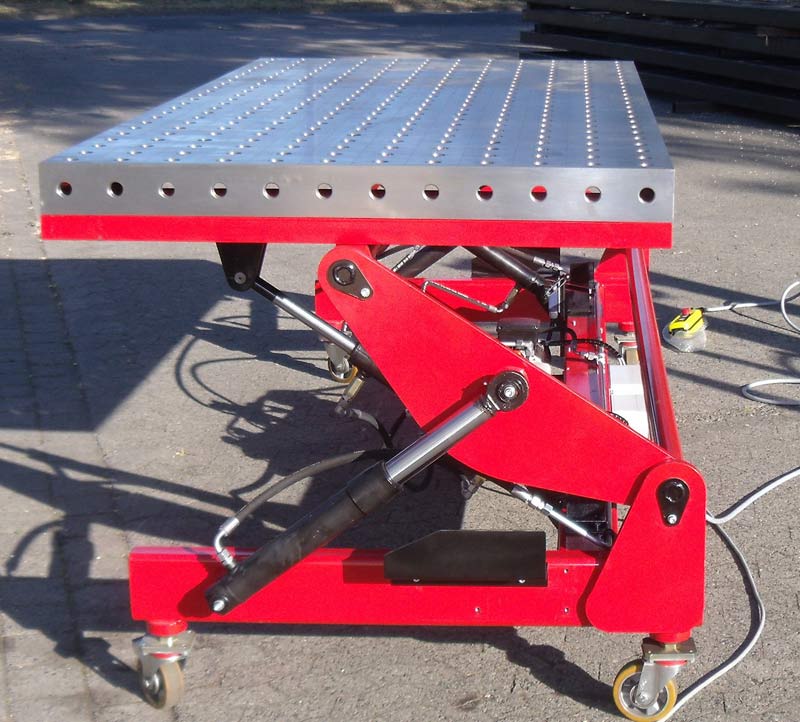

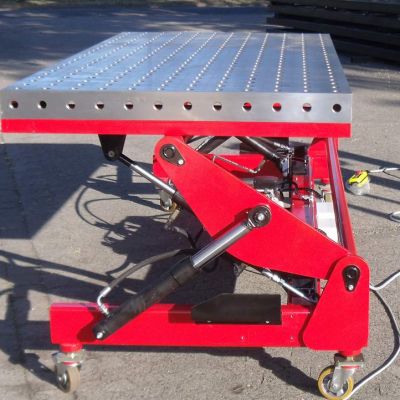

Welding table with lift tilt

Welding table with lift tilt

  • Function stationary or movable
  • Carrying capacity : up to 500Kg
  • Lifting height : up to 1000mm
  • Steering: electro-hydraulic lift, allows lower, tilt up to 45° left / right when welding

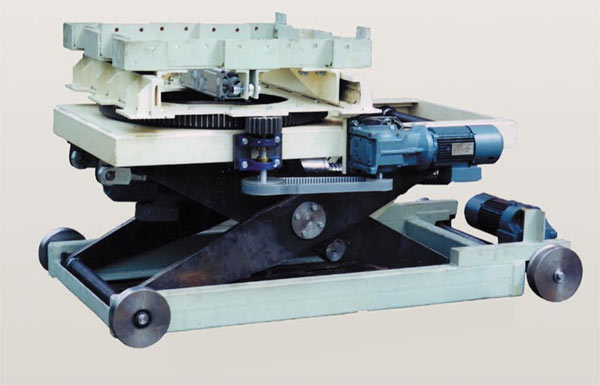

Movable arbor lifting table

Movable arbor lifting table

  • With electrically controllable rotation and positioning.
  • Payload: 3000 kg

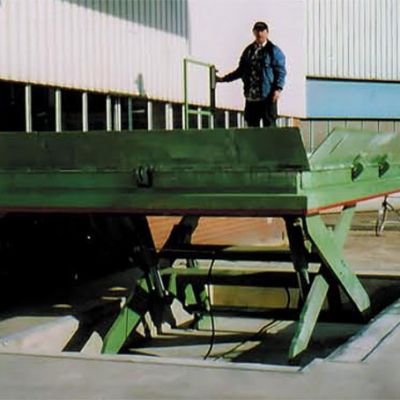

Loading scissors lift with two hydraulically operated side cargo doors

Loading scissors lift with two hydraulically operated side cargo doors

  • Platform: 5.0 x 3.0 m
  • Lifting height: 1.6 m
  • Payload: 6000 kg
  • Application fields: eg transport equipment

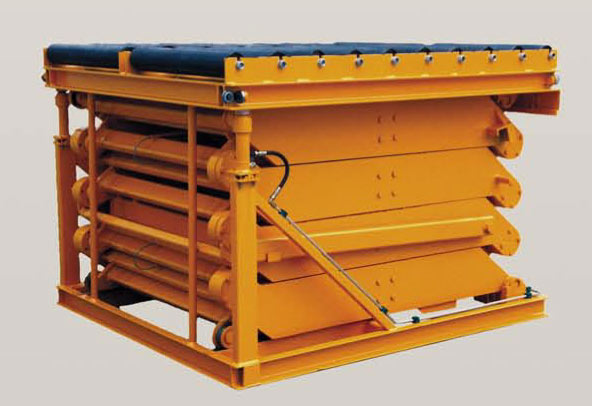

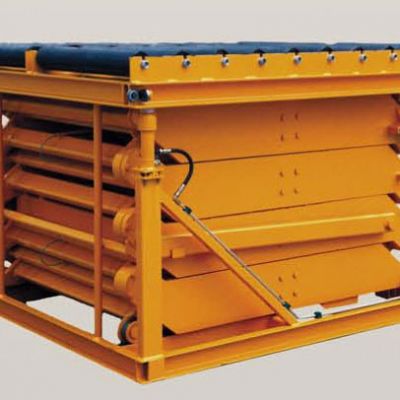

Quad scissors lifting table

Quad scissors lifting table

  • With attached roller and initial lift device to automatically feed a high rise pallet rack
  • Payload: 2000 kg
